Model:

JM-CHGR140W

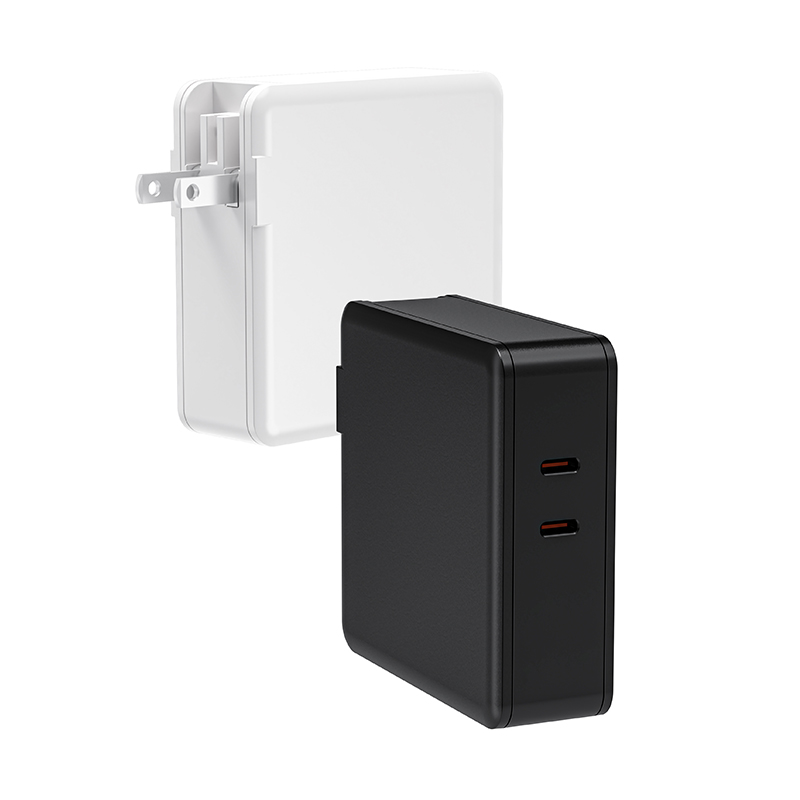

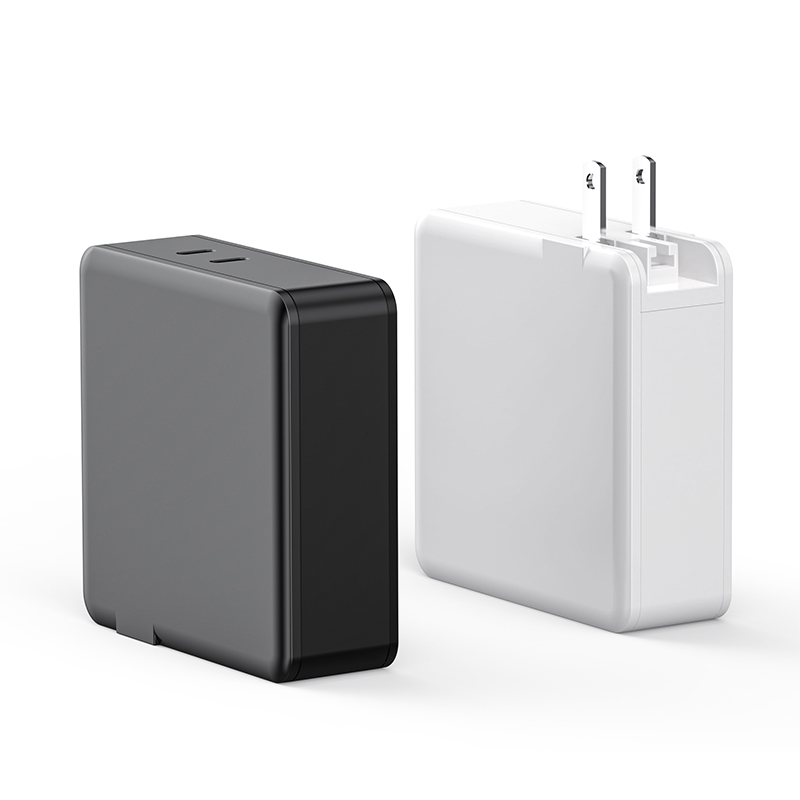

140W 2C port + A port charger GaN

Specifications

  • Input:100V-240V~50/60Hz,2A MAX
  • PD Output C1: 5V/3A,9V/3A,12V/3A,
  • 15V/3A,20V/3.25A, 25V/4A, 28V/5A
  • USB-C1 Output: 140W
  • USB-C2 Output: 140W
  • USB-C1+USB-C2+USB-A=140W
  • PC Plug can be replaced: US/EU/UK/KC/AS
  • Total Output: 100W
  • Size: 73 x 73 x 29mm
  • Weight: 270g

Inquiry

    Send a message and we will contact you within 24 hours!

    140W Ultra High Output with USB PD 3.1: The new PD3.1 feature allows you to charge large laptops and other large power products with a USB-C charger. In response to the future of the charging industry, this charger will provide you with a fast charging experience for future high-powered products.

    (Can charge 3 devices simultaneously as a multi-port charger) Detects the quantity and type of connected devices and automatically output at the optimal current. 2 Type-C and 1 USB-A ports in total, but it is recommended for those who want to charge a USB charging mobile phone, such as a smartphone, iPad, or laptop at the same time.

    Adopts a next-generation semiconductor GaN chip to reduce the heat generation of the charger itself, and it produces a much more efficient charging power in such a small volume, and the Galium Nitride has a high thermal conductivity and excellent heat dissipation, so the charger itself has very little heat.

    The charger is equipped with a variety of protection features than previous products. Always monitor the temperature and automatically adjust the heat generation of the product. Charge more safely by operating temperature control. Firmly prevents over-current, over-voltage, overheating and short circuit, ensuring fast and safe charging.

    • Input:100V-240V~50/60Hz,2A MAX
    • PD Output C1: 5V/3A,9V/3A,12V/3A,
    • 15V/3A,20V/3.25A, 25V/4A, 28V/5A
    • USB-C1 Output: 140W
    • USB-C2 Output: 140W
    • USB-C1+USB-C2+USB-A=140W
    • PC Plug can be replaced: US/EU/UK/KC/AS
    • Total Output: 100W
    • Size: 73 x 73 x 29mm
    • Weight: 270g
